Numa Compact SENuma Compact X SE

Firmware

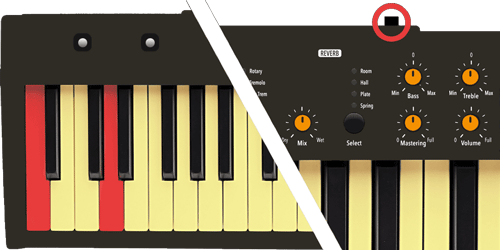

## Release notes ### 1.0.2 - Updated Organ & Synth MIDI messages. - Added MIDI messages for TINE control. - Changed Stick 2 default values for EFX1, EFX2 and bug fixes. - Enabled Organ Pedal preset sound for Tonewheels on MIDI channel 3. - Numa Compact X SE: Portamento management on MIDI channels 3 and 4. - Numa Compact X SE: Tine, Portamento and Synth controls on MIDI channels 3 and 4. ### 1.0.0 Initial release. ## Update procedure 1. Download and install **Numa Manager**. Get Numa Manager 2. Download the firmware. Numa Compact SE Firmware 1.0.2 3. Connect Numa Compact to the power using the power adapter included in the box. 3. Turn on Numa Compact while keeping pressed **A0** and **D1** (1st and 4th white keys from the left). The display will show "Firmware Upload".  4. Connect Numa Compact to your computer with the USB cable included in the box. 5. Open Numa Manager and click Open... to choose the firmware file. 9. Click Run The Update and wait until the end of procedure. 10. Reboot Numa Compact. ## Troubleshooting Numa Compact is not recognized by the computer The display shows "Transmission error"
